Everlast Power TIG 250EX TIG Welder
From Artisans Asylum Wiki
Link to: Metal Shop main page
 |
Extra precaution required for welders. Training / Tool Testing is essential. See Welding Safety doc. |
|---|---|
|
 |
Helmet and gloves required! |
|---|---|---|
| TIG Welders | |
|---|---|
| General Info | |
| Make | Varied |
| Model | Varied |
| Serial | Unknown |
| Specs | n/a |
| Manual | 250EX Manual |
| Asylum Info | |
| Location | Metal Shop |
| Rubric | n/a |
| Training | [https://www.artisansasylum.com/class-
catalog Tool classes] |
| Testing | [https://www.artisansasylum.com/tool-testing Tool
testing], or come to the shop on Tool Testing Night |
| Restrictions | red |
See the TIG Welder category for notes on using all TIG welders
| |
|---|---|

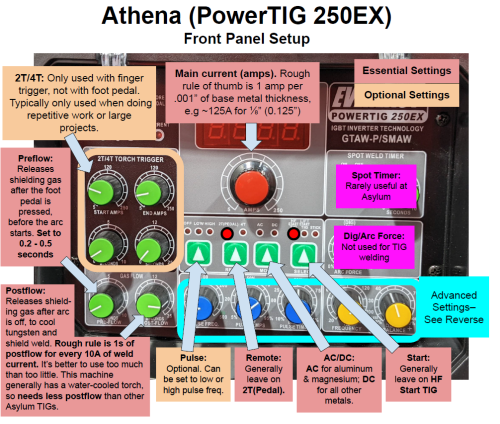

| Everlast PowerTIG 250 EX (Athena) Front panel, basic. |
| |
|---|---|

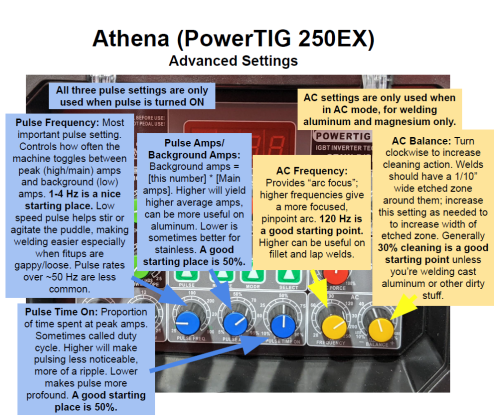

| Everlast PowerTIG 250 EX (Athena) Front panel, advanced. |
The Torch typically installed on the Everlast 250EX (Athena) is water cooled.
KNOW THE DIFFERENCE BETWEEN AN AIR COOLED AND WATER COOLED TORCH.
A water-cooled torch must be operated with a water-cooler or permanent damage will occur to the torch.
| |
|---|---|

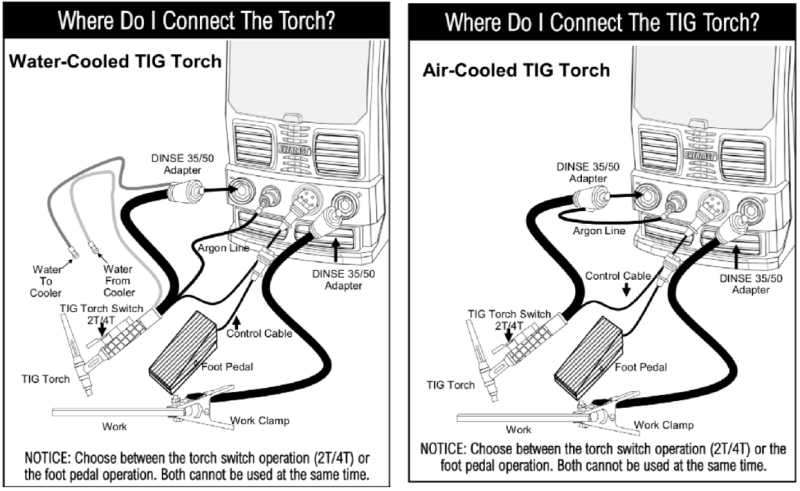

| Water-cooled Everlast PowerTIG 250 EX (Athena) Torch connection. |
