Revision as of 12:06, 17 February 2024
| Powermatic 16" Jointer | |
|---|---|
| General Info | |
| Make | Powermatic |
| Model | PJ1696 |
| Serial | Unknown |
| Specs | |
| Manual | Jointer User Manual |
| Asylum Info | |
| Location | Wood Shop |
| Rubric | |
| Training | |
| Testing | |
| Restrictions | red |
This is a RED tool. Training and tool-testing are required.
Use For
Wooden boards only
Length > 8 inches
Width > 3/4"
Wood with uneven grain requires special care.
Do Not Use For
Fiberboard
Plastics
Composites
Metals
 |
 |
Eye protection required! |
|---|---|---|
Safety Notes
Personal:
- Eye protection required
- Hearing protection recommended
- No loose clothing or jewelry, roll up sleeves above the elbows.
- Tie up or cover long hair
- Closed-toe shoes with good traction.
| |
|---|---|
| Don't chop off your fingers! |
Tool:
- Make sure guards are in place and working well.
- Switch on Dust Collector: Coral 2-filter between Jointer and Planer

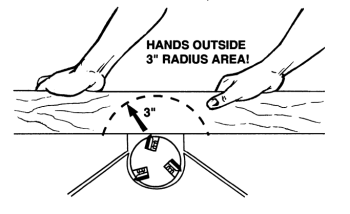

- Keep hands at least 3 inches away from the blades at all times.
- Don't cut wood less than 8" long, 3/4" wide or 1/4" thick.
- For wood less than 12" long, 3" wide and 3" thick, a hold-down or push block is required
- Never apply pressure to stock directly above the cutter head. This can lead to the stock tipping into the cutter.
- Wood grain must run in the direction of the cutting.
- Never make cuts greater then 1/8" deep
- Do NOT wear gloves
