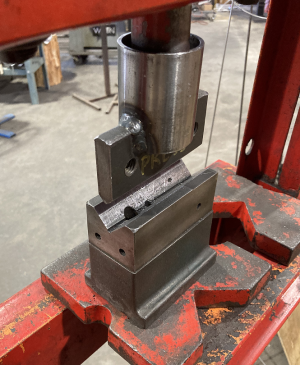

| colspan="2" | Bending tool mounted longitudinally. | |||
{| class="infobox" cellspacing="5" style="width: 2em; text-align: left; font-size: 100%; line-height: 1.5em;" | |||
! colspan="2" class="infobox-image" | [[File:Metal_shop_press_bending_tool_transverse.png|300px|bender_transv]] | |||
|- | |||

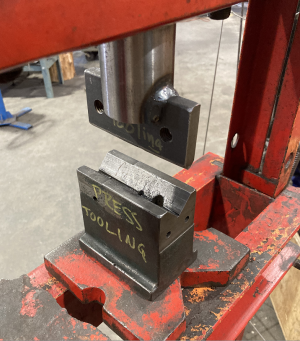

| colspan="2" | Bending tool mounted transverse. | |||
|- | |||
|} | |||
Revision as of 19:53, 5 September 2024
Link to: Metal Shop main page
| 12-Ton Shop Press | |
|---|---|
| General Info | |
| Make | Duralast |
| Model | 12-ton |
| Serial | Unknown |
| Specs | n/a |
| Manual | n/a |
| Asylum Info | |
| Location | Metal Shop |
| Rubric | n/a |
| Training | Tool classes |
| Testing | Tool testing, or come to the shop on Tool Testing Night |
| Restrictions | green |
Description

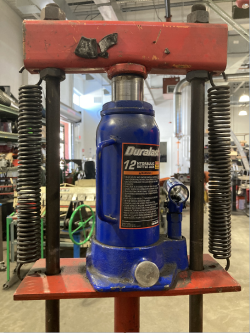

This is a 12-ton hydraulic "bottle" jack mounted to a steel frame so it can be used as a press. The pressure relief valve is located on the press base. This machine is generally used for bending sheets and bars, and it usually has a 4" wide right-angle bending tool and die set mounted. The opening in the frame is 16" wide.
Use for:
- Bending steel sheets and bars up to 1/8" thick
Do not use for:
- High-carbon or Hardened steel
- Round or square stock
Safety Hazards
 |
 |
Eye protection required! |
|---|---|---|
- Workpiece can unexpectedly snap
- Pinching injuries
- Cuts/scrapes from sharp edges and burrs
Tooling
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Removing the tool with a "dead-blow" hammer.
|
