Brackets Tutorial 2a: Reverse-Engineering a Bracket in Solidworks

Link to: Bracketage Main Page

Solidworks basic tutorial by Jim Bredt 20240606

This tutorial assumes basic experience with Solidworks.

If you are unsure how to use the basic tools in Solidworks, then step through the From Zero tutorial

When you load Solidworks you will see a dialog box like the one below.

Select "Part" to create a new design for a part.

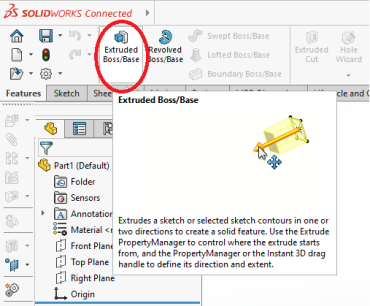

Select "Extruded Boss/Base" in the "Features" tab. Select a plane to sketch on.
