Brackets Tutorial 3: No Frills Shelf Bracket: Difference between revisions
No edit summary |
No edit summary |
||
| (20 intermediate revisions by the same user not shown) | |||
| Line 15: | Line 15: | ||
Insert the bar and line up the cut line with the blade of the Ironworker shear. | Insert the bar and line up the cut line with the blade of the Ironworker shear. | ||
[[File:Tut3_Bracket_nofrills_marking_the_blank.jpg| | [[File:Tut3_Bracket_nofrills_marking_the_blank.jpg|670px|marking]] | ||
[[File: | [[File:SW_gear_icon_tiny.png|6px|thin strip]] | ||
[[File:SW_gear_icon_tiny.png| | [[File:SW_gear_icon_tiny.png|6px|thin strip]] | ||
[[File:Tut3_Bracket_nofrills_setting_blank_in_IW.jpg|220px|bar_in_shear]] | |||
Tigthen down the stock clamp. Depress the foot pedal on the Ironworker to bring the shear blade down. | Tigthen down the stock clamp. Depress the foot pedal on the Ironworker to bring the shear blade down. | ||
'''Release the foot pedal as soon as the bar is cut!''' DO NOT allow the Ironworker to bottom out! | |||
[[File:Tut3_Bracket_nofrills_clamping_stock_in_IW.jpg|250px|clamp]] | [[File:Tut3_Bracket_nofrills_clamping_stock_in_IW.jpg|250px|clamp]] | ||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_IW_foot_pedal.jpg|350px|foot]] | [[File:Tut3_Bracket_nofrills_IW_foot_pedal.jpg|350px|foot]] | ||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_cut_bar.jpg|220px|cut bar]] | [[File:Tut3_Bracket_nofrills_cut_bar.jpg|220px|cut bar]] | ||
| Line 28: | Line 33: | ||
Now we punch the mounting holes in the blank. | Now we punch the mounting holes in the blank. | ||
Turn off the power to the Ironworker. | |||
Select the punch and die set for 1/4" holes. Note that the die for 1/4" holes is 1/32" larger in diameter: 9/32". Tools for tightening the punch and die are provided in the tool box. | Select the punch and die set for 1/4" holes. Note that the die for 1/4" holes is 1/32" larger in diameter: 9/32". Tools for tightening the punch and die are provided in the tool box. | ||
[[File:Tut3_Bracket_nofrills_IW_punch_die_set.jpg|400px | [[File:Tut3_Bracket_nofrills_IW_punch_die_set.jpg|400px|punch set]] | ||
[[File: | [[File:SW_gear_icon_tiny.png|10px|thin strip]] | ||
[[File: | [[File:Tut3_Bracket_nofrills_IW_tool_set.jpg|380px|tool set]] | ||
Place the die in the die seat on the punch table with the small hole facing up. Tighten with the hex wrench provided. | Place the die in the die seat on the punch table with the small hole facing up. Tighten with the hex wrench provided. | ||
| Line 40: | Line 47: | ||
[[File:Tut3_Bracket_nofrills_IW_die_install.jpg|250px|die drop]] | [[File:Tut3_Bracket_nofrills_IW_die_install.jpg|250px|die drop]] | ||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_IW_die_tighten.jpg|300px|die tighten]] | [[File:Tut3_Bracket_nofrills_IW_die_tighten.jpg|300px|die tighten]] | ||
[[File:Tut3_Bracket_nofrills_IW_punch_install.jpg| | [[File:SW_gear_icon_tiny.png|10px|thin strip]] | ||
[[File:Tut3_Bracket_nofrills_IW_punch_install.jpg|240px|punch install]] | |||
Grab the handle at the top of the punch spindle and pull it down to lower the punch into the die. | Grab the handle at the top of the punch spindle and pull it down to lower the punch into the die. | ||
Make sure the punch is centered in the hole in the die. | Make sure the punch is centered in the hole in the die. Push it around by hand until it is centered | ||
Tighten the punch with the wrench provided and then return the handle to its top position. | |||
[[File:Tut3_Bracket_nofrills_lowering_the_punch.jpg|180px|lower punch]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_center_the_punch.jpg|240px|punch center]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_tighten_the_punch.jpg|370px|tighten punch]] | |||
Swing the upper part of the stripper into position. | |||
Place the lower part of the stripper underneath it. | |||
[[File:Tut3_Bracket_nofrills_set_the_stripper_1.jpg|390px|stripper 1]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_set_the_stripper_2.jpg|250px|stripper 2]] | |||
Place the workpiece under the stripper and lower the punch to line it up with the mark. Return the release handle to the top position. | |||
Depress the foot pedal to bring the punch down. | |||
'''Release the foot pedal as soon as the hole is punched!''' DO NOT allow the Ironworker to bottom out! | |||
Repeat the process until all of the holes are punched. | |||
[[File:Tut3_Bracket_nofrills_line_up_workpiece.jpg|350px|align with mark]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_blank_punched.jpg|250px|punched workpiece]] | |||
=Bend the Bracket= | |||
This operation uses the [[Hydraulic Shop Press]] that can be found in the back of the shop near the chop saws. | |||
Place the workpiece in the bending tool and lower the tool until it lightly presses against the workpiece. | |||
Square up the workpiece in the tool and make sure the bend mark is under the tool. | |||
[[File:Tut3_Bracket_nofrills_place_blank_in_bending_tool.jpg|180px|blank in bender]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_square_blank_in_bending_press.jpg|240px|square blank]] | |||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||
[[File:Tut3_Bracket_nofrills_pump_bending_press.jpg|370px|pump press]] | |||

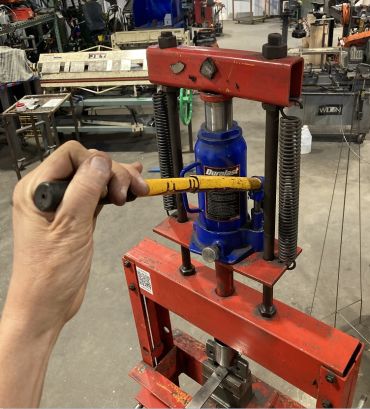

Pump the press and bend the workpiece. Check the angle periodically to make sure it comes out with a right angle. | |||
[[File: | [[File:Tut3_Bracket_nofrills_bending.jpg|180px|bending]] | ||
[[File: | [[File:SW_gear_icon_tiny.png|10px|thin strip]] | ||
[[File: | [[File:Tut3_Bracket_nofrills_shop_press_pressure_release.jpg|240px|pressure release]] | ||
[[File:SW_gear_icon_tiny.png|10px|thin strip]] | |||

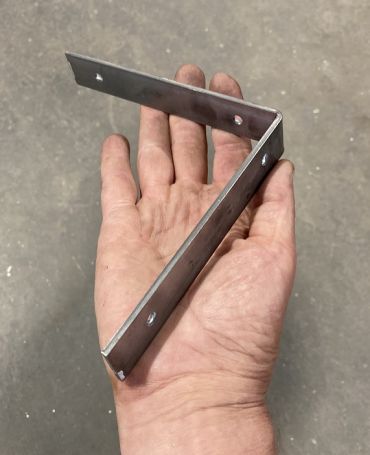

[[File:Tut3_Bracket_nofrills_bent_bracket.jpg|370px|bent racket]] | |||
Revision as of 22:58, 15 September 2024
Link to: Bracketage Main Page
Introduction
This document shows a very simple process for making a right-angle shelf bracket. It uses mostly GREEN tools that don't require any training. The dimensions are 6" x 6" x 1-1/4" but the reader will see that these dimensions are arbitrary.
Cut the blank
We use 1-1/4" x 1/8" steel strip and cut it on the Ironworker. Mark the overall length of the bar and the line where it should be bent with a highly visible marker. Put dots where the mounting holes will go.
Turn on the power to the Ironworker so the blade rises to the top of its travel.
Insert the bar and line up the cut line with the blade of the Ironworker shear.
Tigthen down the stock clamp. Depress the foot pedal on the Ironworker to bring the shear blade down.
Release the foot pedal as soon as the bar is cut! DO NOT allow the Ironworker to bottom out!
Punch the Mounting Holes
Now we punch the mounting holes in the blank.
Turn off the power to the Ironworker.
Select the punch and die set for 1/4" holes. Note that the die for 1/4" holes is 1/32" larger in diameter: 9/32". Tools for tightening the punch and die are provided in the tool box.
Place the die in the die seat on the punch table with the small hole facing up. Tighten with the hex wrench provided.
Insert the punch into the punch socket and tighten the nut only finger tight prior to aligning it.
Grab the handle at the top of the punch spindle and pull it down to lower the punch into the die.
Make sure the punch is centered in the hole in the die. Push it around by hand until it is centered
Tighten the punch with the wrench provided and then return the handle to its top position.
Swing the upper part of the stripper into position.
Place the lower part of the stripper underneath it.
Place the workpiece under the stripper and lower the punch to line it up with the mark. Return the release handle to the top position.
Depress the foot pedal to bring the punch down.
Release the foot pedal as soon as the hole is punched! DO NOT allow the Ironworker to bottom out!
Repeat the process until all of the holes are punched.
Bend the Bracket
This operation uses the Hydraulic Shop Press that can be found in the back of the shop near the chop saws.
Place the workpiece in the bending tool and lower the tool until it lightly presses against the workpiece.
Square up the workpiece in the tool and make sure the bend mark is under the tool.
Pump the press and bend the workpiece. Check the angle periodically to make sure it comes out with a right angle.
