Ironworker
The Metal Shop's 42-Ton Ironworker
General Info
Make Uni-Hydro
Model 42-14
Serial Unknown
Specs n/a
Manual Uni-Hydro Manual
Asylum Info
Location Metal Shop
Rubric n/a
Training Tool classes
Testing Tool testing, or come to the shop on Tool Testing Night
Restrictions green


Description

The Ironworker is a combination shear and punch actuated by a powerful hydraulic ram. There are stages for shearing plate, angle, and a punching station.

Depending on stock width, the shear is capable of cutting mild steel bar up to 5/8" thick.

Materials

Use for:

  • Mild Steel Only: plate, bar, angle

Do not use for:

  • Hardened Steel
  • Stainless
  • Aluminum and other soft metals

Safety Hazards

  • Workpiece can unexpectedly snap.
  • Eye protection required.
  • Don’t pinch your fingers between the machine and the workpiece as the shears perform the cut.
  • Cuts/ scrapes from sharp cut edges of work
  • Pieces falling on your feet after the cut.
Warning Safety glasses Eye protection required!


Operation Notes

Ironworker Ovierview

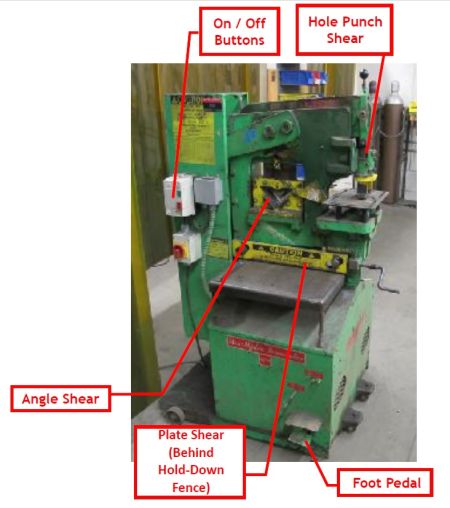

Ironworker, Business End
  • Machine has three sets of shears: for plate, for angle, and for removable dies to punch holes. Never use more than one shear at a time.
  • Remove all hole punches and dies from machine when punching operation is complete. (Reduces wear and tear, breakage.)
  • Use hold-down clamps to secure work. (Also keeps workpiece level during cut.)
  • Maximum workpiece size is listed on the machine (yellow labels). Do not exceed the 42 ton rating. Minimum work size is not clear.
  • When punching holes, the hole must be larger in diameter than the thickness of the material – you can’t punch a ¼” hole in ¼” bar
  • Learn to use foot pedal to line up your cuts. (For steel plate and angle, lower shear position using the foot pedal.)
  • When changing punch operation, always recheck die for misalignment.
  • Small amounts of oil on the steel smooths punching operation, especially on harder steels.
  • For production punching, apply oil to the punch and die after every 8 to 10 holes punched.

Basic Operating Instructions

Warning Never perform more than one cut / punch at a time!


Ironworker Backside

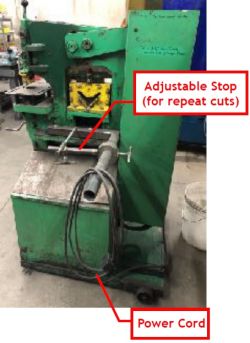

Back of Ironworker


1. Perform a safety check prior to use

  • Clear all cutting areas. Remove debris from prior cuts at backside of machine. If not using hole punch dies, remove them.
  • Check to make sure your workpiece does not exceed machine’s capacity.
  • For extra safety, turn machine on only when operating the foot petal. Turn machine off when performing other adjustments.

2. Plug machine into a welding bay outlet.

3. Insert and secure the workpiece.

  • Press the green button to turn the machine on. The cutting blades will automatically move to their highest point.
  • Optional: Using the foot petal, adjust shear to a height appropriate for your alignment needs. (Especially useful when using the plate shear.)
  • Turn the machine off.
  • Insert workpiece and align with cutting blades.
  • Optional: Mark your pieces as needed to help with alignment. (Sharpie works well.)
  • Secure workpiece. For plate, use the crank to tighten the Hold-Down Fence. For angle, flip the safety fence into place. For hole punching, keep the machine at its highest position, insert the stripper assembly correctly, and align the punch with the die. (See instructions on punch installation.)
  • Optional: Use Adjustable Stop on back of machine for repeat cuts.

4. Press the green “On” button to turn the machine on, then step on foot petal to perform the cut / punch.

5. Turn machine off. Remove workpiece and clear cut debris from the machine.

Punch Installation / Basic Operation

Ironworker Punch Pieces
Parts of the Punch and Die Assembly

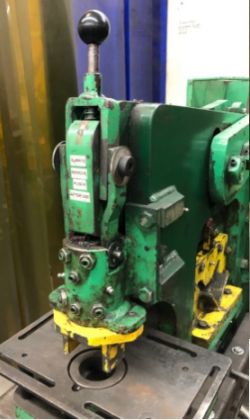

Ironworker Punch Side

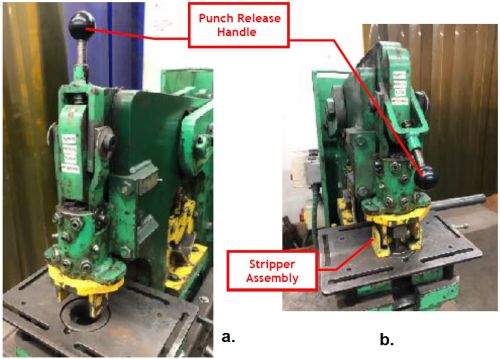

a. Normal Configuration - Punch not in use. --- b. Punch Installed, with punch release handle lowered to check die alignment.
Ironworker Punch Closeup

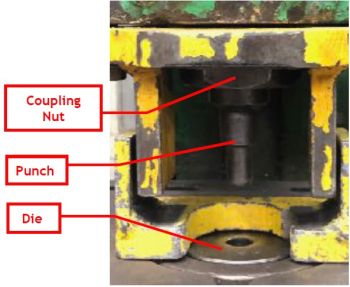

Punch Close-up.


1. Check size markings on the punch and die to verify that they match.

Punches can break if mismatched or abused.

2. Place the Punch into the Coupling Nut and secure to the punch stem using the yellow wrench.

3. Insert the Die into the round hole in Punch Table.

Wider side of hole in die faces down, allowing the slug to fall to the floor during the punch operation.

Tighten the die in place with the set screw using the hex-wrench provided in the die kit box.

4. Test for punch alignment by lowering the Punch Release Handle.

The punch should be aligned with the die. Try loosening the punch retaining nut and shift the punch by a little bit. If that doesn't work, use a wrench to loosen the bolts below the punch table, adjust, and retighten.

  • The manual suggests checking the punch alignment with the die every ten punches or so.
  • The tool set contains a can of viscous machine oil for lubrication. Put a dab of that on the punch especially if you are puncing a lot of holes.

Return the Punch Release Handle to the upright (locked) position when done.

5. Place workpiece on table.

Use Punch Release Handle for alignment.

6. Insert and align the removable half of the stripper assembly.

Ironworker Punch sizes

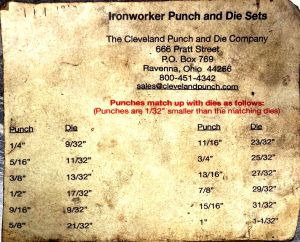

A convenient table if you aren't good with fractions.
Ironworker Punch Set
Punches are mated with dies 1/32" larger than the punch size.
Ironworker Punch Tool Box
Punches are kept in a gray plastic bin on on a shelf adjacent to the machine.


Double check to make sure the two halves of the Stripper Assembly align properly, both with each other and also with the workpiece.

  • When aligned properly, the Stripper assembly will remove the punch from the workpiece on the machine’s upward stroke. The removable half of the stripper assembly locks with the attached half of the assembly to hold the workpiece down as the machine extracts the punch from the hole.
  • Make sure to understand the above mechanics. It’s no fun when a punch gets stuck the workpiece.

7. Turn the machine on and use the foot petal to perform the punch.

8. Turn the machine off.

Remove workpiece. When done, remove the punch and, and disassemble the Stripper Assembly.

Supplementary Information

Link to: Uni-Hydro manual

Link to: Maintenance and Operation Manual

Link to: Uni-Hydro Brochure

Die Care

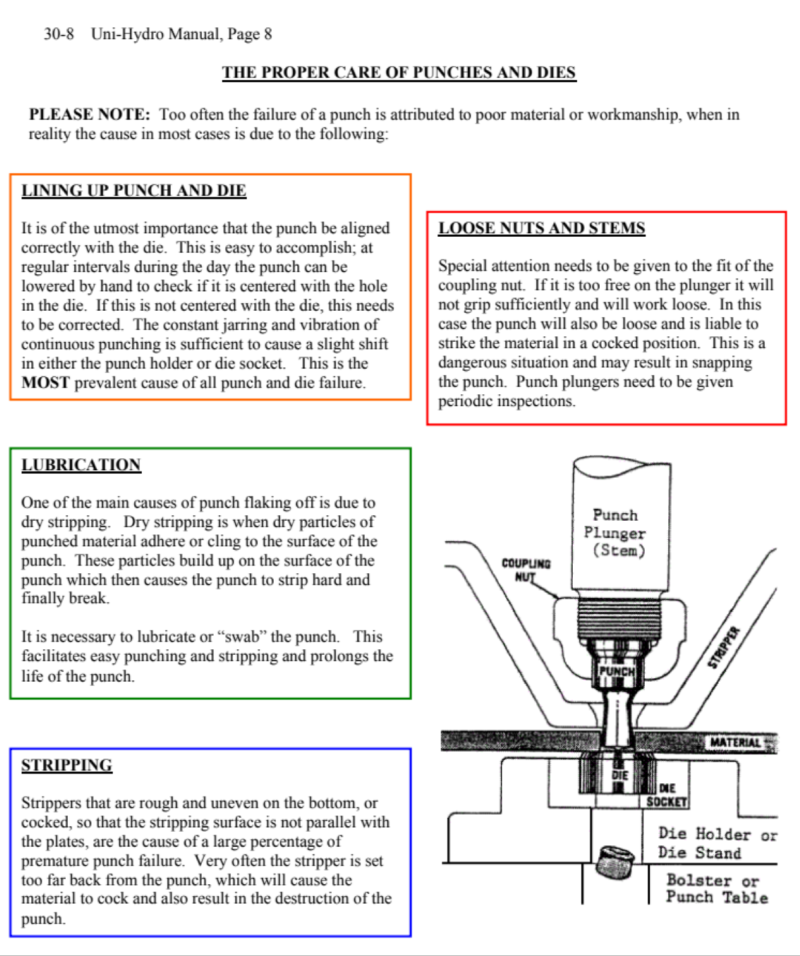

Excerpt from Ironworker Manual
Size Limits

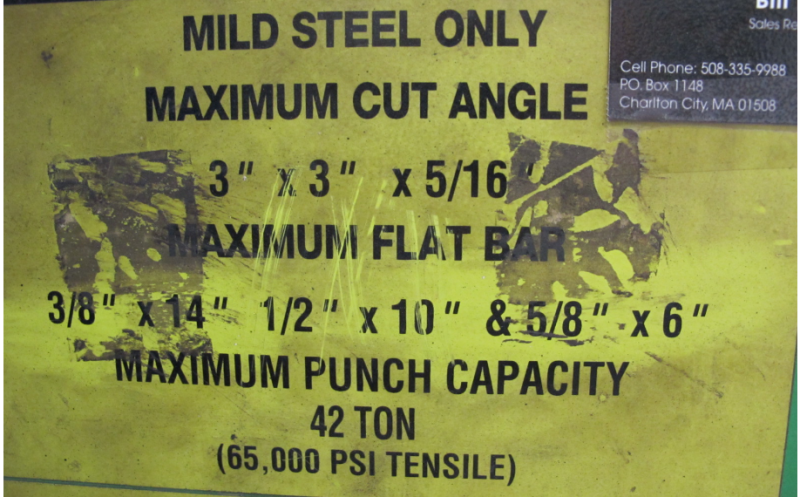

Antique Label on Ironworker Showing the Maximum Stock Sizes
Punch Pressures

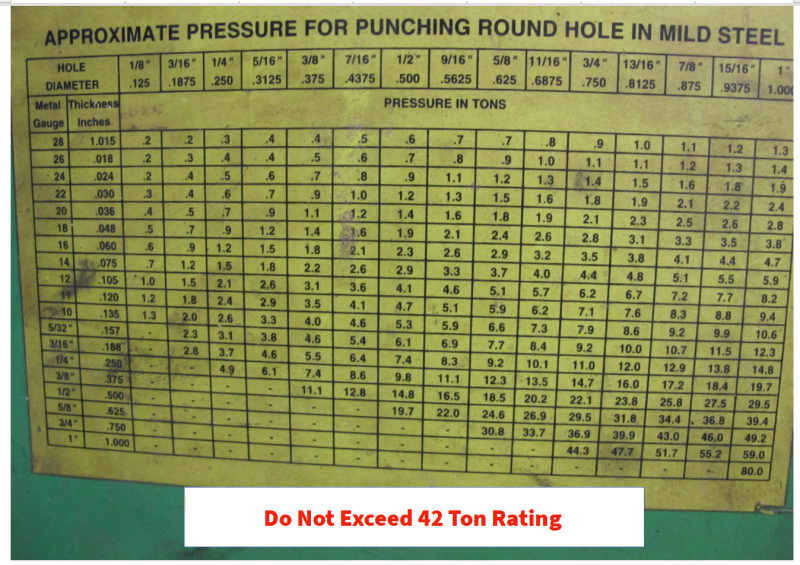

Antique Label on Ironworker Showing the Force to Punch Holes in Plates.
