BlackCat Laser Operator's Manual

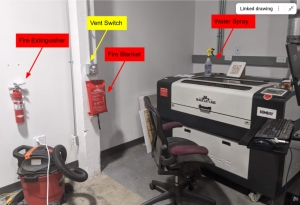

Familiarize yourself with the safety equipment close to the laser cutter.

Use the Laser Operation Checklist every time you use this tool.

Safety

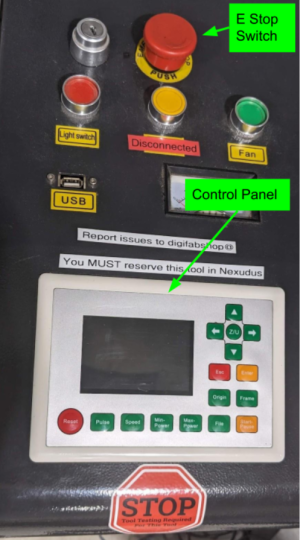

Control panel, featuring the stop switch

Fire Safety

• Flame right where the laser is cutting is ok.
• Flame anywhere else is a problem.
  • Hit Pause.
  • Move the laser head away from the flame.
  • Open the machine.
  • Spray the flame with water.
  • If needed, use the fire blanket.
  • If needed, use the fire extinguisher.
    • The large one by the lasers is electronics safe. Use the whole thing at once; don’t be shy!
    • The second fire extinguisher is by the door and is also safe for the lasers and electrical fires.
• Report any and all fires to staff and digifabshop@artisansasylum.com.

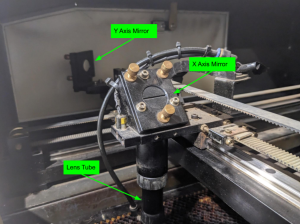

Blackcat lasercutter lens mirrors

Materials Safety

All materials listed in the Lightburn Materials Library file are approved to cut. These are suggested starting points, not known good settings! Do test cuts and tweak from there.

• Do not cut anything that would produce toxins, carcinogens, or poisonous gasses.
• No PVC.
• Don’t cut anything that will make a mess of the machine -- food, for example.

Want to cut a material that’s not in the lightburn Materials Library? Email the MSDS to the shop leads for approval.

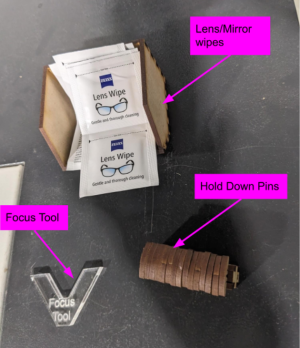

Blackcat lasercutter accessories

Materials List as of Oct 2023

This laser cannot cut metal of any thickness.

CUT or ENGRAVE:

• Acrylic
• Cardboard - Corrugated
• Cardboard Mat Board
• Chip Board
• Cloth
• Cork
• Delrin
• EPDM Rubber
• Hardwood
• Leather
• MDF
• Magnetic Sheet
• Mylar
• Open Celled Foam
• PETG
• Paper
• Pine
• Plywood - Baltic Birch
• Rubber Stamp
• Sign Foam
• Silicone
• Styrene

ENGRAVE/MARK ONLY:

• Anodized Aluminum (just removes annodization)
• Brick
• Ceramark
• Ceramic
• Glass
• Marble/Granite
• Painted Metal (just removes paint)
• Painted Wood (just removes paint)
• Powder Coated Aluminum (just removes paint)
• Stone

Startup Checklist

• Is the bed clean of debris?
  • Use the shop vac to clean it, if necessary.
• Check that these items are where they're supposed to be:
  • Water spray
  • Fire blanket
  • Fire extinguisher

• Turn the vent fan on.
  • The vent fan switch is on the wall.
• Turn on the machine.
  • Twist the E-stop button to power on.
• Is the chiller on?
  • Check for the green light on the chiller.
• Is the air compressor on?
  • Check for vibration from the air compressor.
• Are the mirrors clean?
  • Visually inspect the X and Y axis mirrors. Clean with lens wipes if dusty or dirty.
• Is the lens clean?
  • Look through the X Axis mirror to view the amber lens. If it looks dirty, clean the lens.
• Add materials and hold down (if needed).
• Focus the laser.
• Set origin.
• Send a job to the laser from Lightburn.
  • Frame
  • Start

Shutdown Checklist

• Remove materials.
• Clean the bed.
• Shutdown the machine.
• Turn off the vent, as long as no other machines are in use.
• Clean up the shop.

Lightburn Software

	The best way to cancel a move and return to the Origin is to press Esc on the Laser's control panel. Lighburn has had issues with moving the tool head outside of Frame and Run commands.

Review tutorials #2 and #3 to get started.

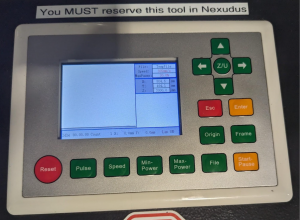

Control panel

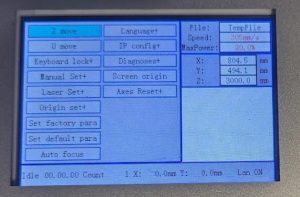

Blackcat lasercutter navigation menu

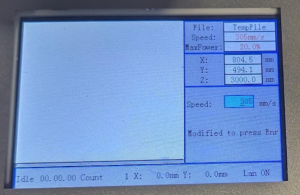

Blackcat lasercutter speed adjustment

Control Panel Operation

Button	Description
Navigation	Use the arrow keys to jog the laser head at whatever speed is set in the speed menu.
Menu	The Z/U button will enter the menu. Up and down arrows will select different menu options. Enter will activate sub menus. Esc will exit.
Z Move	This is the first option in the menu, and the only one you need in regular operation. With Z Move selected, the left and right arrows will move the machine bed up and down. Use this to set the focus.
Esc	Escape the current menu without saving changes, or, if you're at the main screen, return the laser head to the Origin location. If a cut is in progress and paused, the Esc key will quit the current operation.
Enter	Confirm the current option.
Origin	Set the Origin to the current position of the laser.
Frame	Move the laser head in a bounding box around the current file.
Start/Pause	Start the current file, pause the operation in progress, or restart a paused operation.
File	Enter the file menu. This will allow you to select the active file or delete old files in the laser memory.
Max Power	Set the maximum power of the test pulse or live adjust Max Power of a cut in progress (not recommended).
Min Power	Set the minimum power of the test pulse or live adjust Min Power of a cut in progress (not recommended).
Speed	Adjust the jog and frame speed: Use the left and right arrows to move the cursor to select which digit to change. Use up and down arrows to change that digit. 305 is the recommended base speed. Move over to the hundreds digit and reduce that to 0, and then use speed 5 for fine adjustments. Reset the speed to 305 before your cut so the frame and jog speed is reasonable.
Pulse	Fire a test pulse. Uses max power setting to determine power. and fires at the current position. This won’t work if the door is open!
Reset	Reset the controller (you shouldn’t need to do this ever).

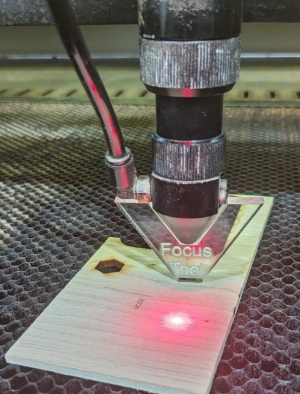

Focusing the laser

Focusing

• Press Z/U to enter the menu.
  • Z Move is the first option.
• Raise or lower the bed as needed until the focus tool fits precisely between the air nozzle and the material surface.
  • The tool should be able to slide easily in and out of the gab, but when it is directly below the nozzle there should be no up and down movement.

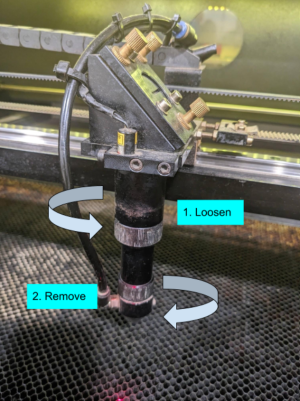

Loosen and remove the lens

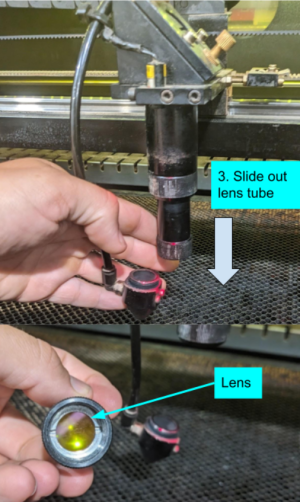

Slide the lens out of the tube

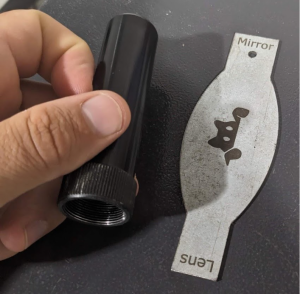

Use the lens removal tool to unscrew the retaining ring

Cleaning the lens

• Loosen the top knurled ring so the lens tube can spin freely.
• Unscrew the air nozzle from the lens tube by holding the air nozzle in place and spinning the lens tube.
• Slide the lens tube down to remove it from the laser head.
• Use the lens removal tool to unscrew the retaining ring.
• Open a cleaning cloth over the lens tube and flip the lens out into the cloth.
  • Do not touch the lens with your bare hands.
• Clean the lens by gently wiping away any debris.
• Reverse this procedure to reinstall the lens.
  • When placing the lens back into the tube note that one side is flat and the other is convex (slightly domed).  The flat side goes against the retaining ring and the convex side goes down the tube.
• Make sure that no more than 1 inch of the lens tube is sticking down from the upper knurled ring to prevent the air nozzle from crashing into the back of the machine on startup.
